How to Use Cropster To (Almost Always) Know Exactly When First Crack Began

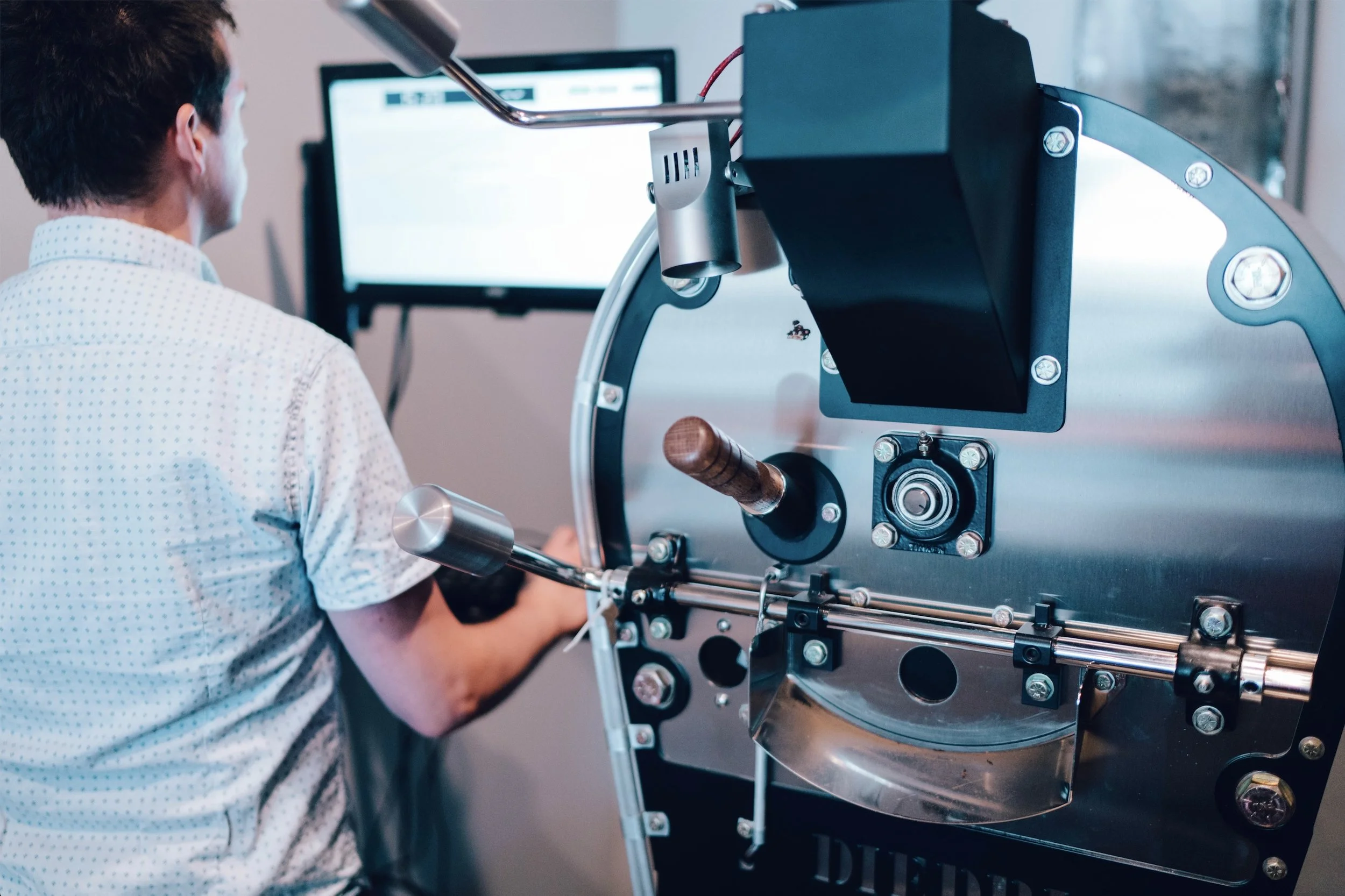

Phil Davidson  operating Cropster while roasting.

Phil Davidson operating Cropster while roasting.




One challenge to precision roasting is knowing when first crack began. Some roasting machines make hearing the cracks nearly impossible, but even when hearing the cracks is easy, knowing exactly when to mark the beginning of first crack can be debatable or subjective.

The importance of precisely marking first crack

First crack (FC) is perhaps the most significant event during a roast:

  • At FC beans release a tremendous amount of moisture and gas in a short period of time

  • The ROR is most likely to crash at FC (due to that same release of water vapor and gases)

  • Much smoke develops

  • The bean surfaces are delicate, and (in a classic-drum roaster) the drum is simultaneously very hot, a risky combination.

If the ROR is to crash, it will most likely crash just as FC begins (there are many exceptions to this, notably including some of this year’s Ethiopian coffees.)

Gas settings before and after FC

The timing and magnitude of gas adjustments around FC are critical…when roasting a coffee that tends to crash early in FC, I often advise clients to avoid lowering the gas in the window of time from 45 seconds before to 45 seconds after the beginning of FC. (The specific advice to clients is more nuanced than that, as the timing of adjustments depend on the timing of the crash and the rate of roasting. However, FC +/- 45 seconds suffices for this post.) Lowering the gas within that time window will exacerbate any potential ROR crash. Simply raising the gas at FC (presumably just before a crash begins) to mitigate the crash is a terrible choice— I won’t go into that here, but if you currently use that strategy, find a way to avoid a crash without raising the gas; if you match the curves well (ie. roast two nearly identical curves, one created by raising the gas at FC and the other without raising the gas) you’ll taste the difference. If you can’t taste the difference, cup the roasts blindly with someone with a more experienced and sensitive palate, something worth doing anyway. There’s more to roasting than creating an aesthetically pleasing ROR curve — how you create that curve matters tremendously. I consider raising the gas at FC “cheating,” in the sense that it may produce a great-looking curve, but harms coffee flavor. While a nice curve may be a prerequisite for an optimal roast (note: “optimal”, not “I think it tastes good”), it is not a guarantee of an optimal roast.

To time the gas settings perfectly throughout a roast, it’s critical to know precisely when FC occurred, or will occur. Having experience with a given coffee may help a roaster predict the bean temperature of FC. However, the curve leading up to FC and the ROR and ET readings at FC may alter the bean-probe reading at FC for a given coffee. I’d like to propose a system that is better than simply listening for FC or assuming FC will always arrive at a given bean-probe reading.

How to use Cropster data to precisely mark first crack

Several roasters have remarked on the behavior of the ET curve at FC; depending on the location and sensitivity of the ET probe, the ET curve may arc up during FC. (If you have an inlet-temperature curve, that may arc up even more.) You can see a version of that phenomenon in the curve below.



Close up of roast with proper FC marked.

Close up of roast with proper FC marked.




Unfortunately, the timing of arc in the ET curve is not obvious enough to help one mark FC with precision. However, the ET ROR curve is usually sensitive enough to alert the operator of the imminent hump in the ET curve. Here is the same late-batch curve with the ET ROR curve shown (turning on the ET ROR in Cropster compressed the BT.ROR curve, so please ignore that.)

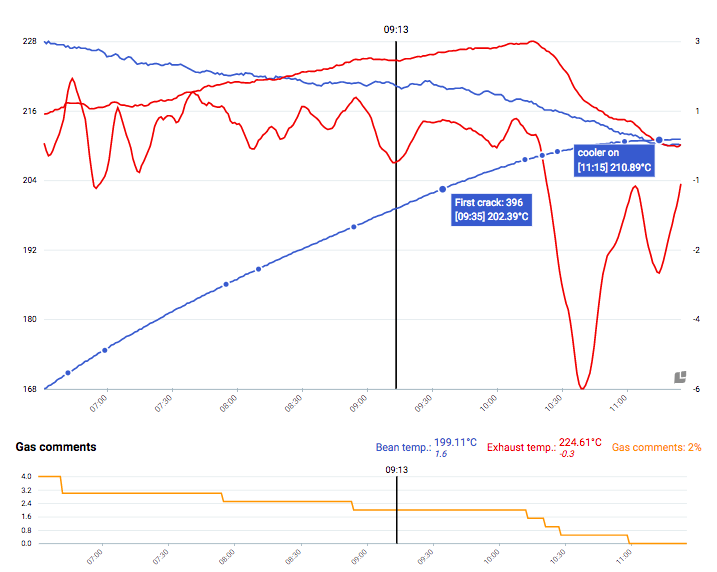

Close up of end of roast with ET ROR on

Close up of end of roast with ET ROR on




Note that the operator marked FC at 9:35, but I have placed a vertical line at 9:13 at the trough of the ET ROR curve. I believe that the ET ROR trough is usually the best indicator of the “real” beginning of FC. Some exceptions to this would be if the operator had decreased the gas shortly before the ET ROR troughed, FC began in a prolonged, erratic manner (as may happen with some coffees), or some decafs and naturals that crack gently or erratically.

I believe the ET ROR jumps for several reasons, but I don’t claim to completely understand the dynamic (there isn’t enough scientific evidence for anyone to understand it completely.) Part of the explanation seems to be that the release of moisture and gas from beans as they fracture increases the flow of hot air passing the ET probe. I’ve often wondered why the BT ROR crashes at the same time the ET curve jumps up. This may not be the complete reason, but I will speculate that the moisture escaping the beans cools their surfaces and, more importantly, deflects some of the hot air attempting to penetrate the beans. The combination of cooler moisture and deflected hot air causes the BT ROR to crash, while the greater amount of hot air passing the ET probe causes the ET curve to jump.

Here’s another example of a Cropster curve with and without the ET ROR shown:

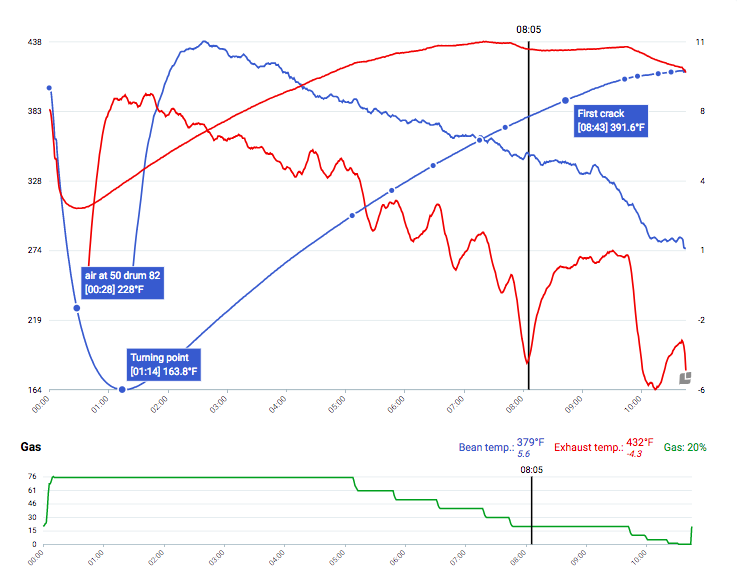

Rwanda FC marked too late

Rwanda FC marked too late



I believe FC really began at 8:05… this coffee is a fresh-crop Rwanda that crashes unusually late in FC.

I believe FC really began at 8:05… this coffee is a fresh-crop Rwanda that crashes unusually late in FC.




What if I mark FC at the wrong time?

If you mark FC too early or too late, simply add a new “First Crack” comment in Cropster… the software will assume the new FC timing is the proper one and will adjust FC and the live DTR counter accordingly. You may clean up your redundant comments by making a new “dummy” comment at the exact time of the incorrect FC comment. For example, in the roast above, if I want to eliminate the FC comment at 8:43, I may choose to make a new comment at 8:43, type “x” and then press “Text Comment”. That will add the comment “x” at 8:43 and delete the old FC comment.

**Breaking news: if that process sounds clunky it's about to get smoother. The Cropster team just informed me that the next update to RI4 (due within two weeks) will allow comment editing on the fly.**

Coda

Since I have begun teaching clients to mark FC using the trough in the ET ROR, they have been better able to keep their ROR’s smooth, avoid crashes, and even roast a little darker without an ROR crash or flick. Mind you, this strategy doesn’t always work, particularly if one lowers the gas shortly before the crack. In such cases, some experience with this method will help.

Many thanks to Jerome of Structure Roasters for his tutelage in some of the scientific dynamics at play during first crack.
